EXHAUSTO RSV Chimney Fan

CSI CONSERVATION SYSTEMS INC 407.351.9121 CONTACT BACK HOME

The EXHAUSTO RSV Chimney Fan is an ultra-reliable, low-maintenance, variable-speed commercial electric chimney fan designed specifically for gas-fired or oil-fired heating appliance, such as boilers, water heaters and pool heaters, and for gas-fired cooking appliances, such as ovens, broilers, fryers and grills.

The RSV discharges vertically (horizontally, if side-wall mounted) at a high velocity, ensuring a negative pressure in the entire chimney or stack system.

Permanently balanced impeller assures low noise levels and vibration-free operation.

Corrosion-resistant cast aluminum fan housing is hinged to allow for periodic cleaning and for access to the stack should the need arise.

Available in nine different sizes. Individual fans can be combined when more power is required.

009-016 Product Information
200-450 Product Information
Installation Manual

For Grease Fan applications, see the Exhausto GSV Grease Fan or the GSB Grease Ventilator. For pizza ovens, see the Exhausto GSV Pizza Oven Fan.

EXHAUSTO RSV Commercial Chimney Fan

Low maintenance.
Extremely quiet direct drive (no more broken belts).
Withstands operating temperatures up to 575°F.
Rapid high return on investment.
Two year factory warranty and ten year warranty against corrosion.
Listed to UL762 and ULC-S645.

RSV Features

Proper Draft Mechanical venting ensures that gas-fired appliances will always be drafted per the manufacturer's exact specifications. Virtually unlimited lengths of venting can be used without increasing stack size.

Durability Exhausto fans are designed specifically to operate continuously within the extremes of heat and dirt typically produced as the byproducts of gas-fired heating and cooking appliances. All components are produced in-house by Exhausto in Denmark to the company's own exacting specifications.

Low Maintenance Totally enclosed and permanently lubricated motors require no maintenance thus annual service costs are virtually eliminated. For oil-fired applications, the unit should cleaned periodically.

Corrosion Resistant Cast aluminum fan housing resists corrosion and is hinged and can be opened easily for inspection of the fan and stack and periodic cleaning. Stainless steel impeller (009-016) and cast aluminum impeller (200-450) also resist corrosion.

Return to Top of Page

RSV Specifications
Performance ratings, electrical information and approximate shipping weight in pounds.

Model	Performance		Electrical Ratings	Weight
Model	Maximum FPM	Actual FPM	Voltage	Weight
RSV 009	2351	2215	1 x 120V AC 60 HZ 0.5 A	28
RSV 012	2592	2286	1 x 120V AC 60 HZ 1.4 A	46
RSV 014	2593	2126	1 x 120V AC 60 HZ 2.9 A	60
RSV 016	2169	1550	1 x 120V AC 60 HZ 5.8 A	86
RSV 200	1729	1525	1 x 120V AC 60 HZ 1.4 A	47
RSV 250	2222	1822	1 x 120V AC 60 HZ 2.9 A	60
RSV 315	2771	1980	1 x 120V AC 60 HZ 5.8 A	88
RSV 400	2752	1837	3 x 208V-240V AC 60 HZ 3.5 A 3 x 400V AC 60 HZ 2.1 A	97
RSV 450	4134	2759	3 x 208V-240V AC 60 HZ 6.5 A 3 x 400V AC 60 HZ 3.8 A	128

Return to Top of Page

RSV Sound Diagram

Model	Lw dB (measured in accordance with ISO 3744)							Lp dB(A)
Model	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	8000 Hz	Lp dB(A)
RSV 009	57	55	54	49	40	35	26	26
RSV 012	64	62	61	55	51	46	40	33
RSV 014	71	70	68	61	56	50	44	40
RSV 016	76	76	70	65	60	55	49	44
RSV 200	58	60	62	61	56	44	37	36
RSV 250	64	68	66	65	61	49	45	41
RSV 315	71	75	70	73	68	57	52	48
RSV 400	76	80	75	79	74	62	57	53
RSV 450	79	83	78	78	77	65	60	56

Return to Top of Page

RSV Capacities

RSV 009-016

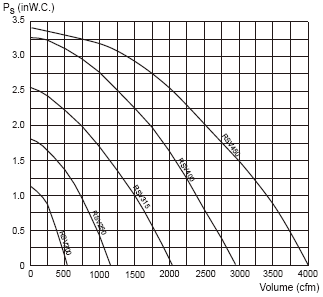

RSV 200-450

Return to Top of Page
