EXHAUSTO GSB Grease Ventilator
CSI CONSERVATION SYSTEMS INC 407.351.9121    CONTACT    BACK    HOME


The EXHAUSTO GSB Grease Ventilator is an ultra-reliable kitchen exhaust system designed specifically for commercial food service applications. EXHAUSTO GSB Grease Ventilator

The GSB features a variable speed direct drive motor for easy air balancing. It can be mounted free-standing on a roof or on its back directly on a curb.

The GSB is quiet and highly efficient with permanently-balanced backward inclined centrifugal impellers and a totally enclosed motor with permanently sealed and lubricated bearings. A service door provides easy access to the motor and impeller assembly.

Operating range is 482°F (constant) to 575°F (intermittent). Listed and tested by ETL to UL705 for Power Ventilators and UL762 for Power Roof Ventilators for Restaurant Exhaust Appliances.

| Specifications | Sound Diagram | Capacity & Plume Height | Literature |

GSB Specifications
Model GSB 315 GSB 400 GSB 500
AC Voltage Volts 3 x 230 60 Hz
Amperage Amps 3.5 7.0 10.5
Motor Output HP 1 2 3
Weight lbs. 126 167 227
Return to Top of Page

GSV Sound Diagram


Model

Lw dB (measured in accordance with ISO 3744)


Lp
dB(A)
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz
GSB 315 71 76 68 66 61 54 46 71
GSB 400 78 82 74 74 67 61 50 78
GSB 500 82 85 78 77 69 66 57 81
Return to Top of Page

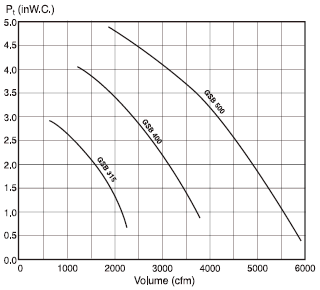

GSB Capacity Chart
EXHAUSTO GSB Capacity Chart
Return to Top of Page

GSV Literature
Product Information
Installation & Operation Manual
Return to Top of Page
