EXHAUSTO GSV Grease Fan
CSI CONSERVATION SYSTEMS INC 407.351.9121    CONTACT    BACK    HOME

The Ultimate High Performance Grease Fan!
Ultra-reliable, variable-speed, kitchen exhaust fan designed specifically for gas-fired cooking appliances (i.e., fryers, broilers, ovens and stoves) in commercial and institutional settings. With its totally enclosed motor, sealed bearings, and permanently balanced cast aluminum impeller, the GSV is extremely quiet, vibration free, and virtually maintenance free. Corrosion-resistant cast aluminum fan housing is hinged and can be opened for access to the stack and periodic inspection of the fan's internal components.

Proper Kitchen Ventilation Variable speed mechanical venting enhances the energy efficiency of gas-fired appliances in commercial and institutional kitchens of all shapes and sizes - from small family concerns to large-scale operations at resorts, casinos, hospitals and prisons.
Corrosion-resistant cast aluminum fan housing is hinged and can be opened for access to the stack and for periodic cleaning.
EXHAUSTO GSV Grease Fan

Durability Exhausto fans are designed specifically to deliver optimum performance despite the extremely hot, grease-laden gasses that are the byproducts of commercial and institutional cooking operations. All components are produced in-house by Exhausto in Denmark to the company's own exacting specifications.

Low Maintenance Totally enclosed TEFC direct drive motor with sealed, permanently lubricated ball bearings eliminates belts and is essentially maintenance free. Annual service and repair costs are virtually eliminated - only periodic cleaning and inspections of the stack's integrity are necessary.

  • Extremely quiet and vibration free.

  • Direct drive (no more broken belts).

  • Very low maintenance.

  • Withstands temperatures up to 575°F.

  • Rapid high return on investment.

  • Five year factory warranty (ten-year warranty against corrosion perforation).

  • Listed to UL762.

Product Information   Installation & Operation Manual
| Features | Specifications | Sound Diagram | Capacity |

GSV Specifications
Model GSV 250 GSV 315 GSV 400 GSV 450
Maximum Discharge Velocity FPM 2,222 2,771 2,752 4,134
Actual Discharge Velocity FPM 1.9 x CFM 1.2 x CFM 1.03 x CFM 1.03 x CFM
Voltage VAC 1 x 120 60 Hz 3 x 208-240 60 Hz
Amperage Amps 2.9 5.8 3.5 6.5
Power Rating kw 0.16 0.35 0.75 1.5
FA Sones 3.9 6.3 7.8 8.3
Temperature Ratings °F Intermittent 575°F Continuous 482°F
Weight lbs. 60 88 97 128
Return to Top of Page

GSV Sound Diagram


Model

Lw dB (measured in accordance with ISO 3744)


Lp
dB(A)
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz
GSV 250 64 68 66 65 61 49 48 41
GSV 315 71 75 70 73 68 57 52 48
GSV 400 76 80 75 79 74 62 57 53
GSV 450 79 83 75 78 77 65 60 56
Return to Top of Page

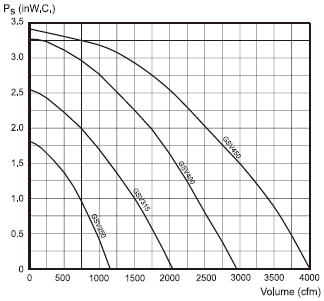

GSV Capacity
Return to Top of Page
