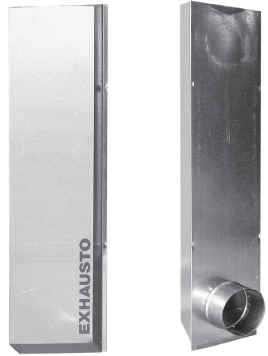

| EXHAUSTO SDR Subduct Riser |
| Eliminate the need for fire and smoke dampers in multi-story commercial and residential buildings. |
| Constructed of 26 gauge galvanized steel, four models are available to fit 4", 6", 7" or 10" diameter exhaust ducts from clothes dryers, kitchen hoods, or bathroom fans. |
| Each
SDR features a 3/8" external flange to allow it to be mounted
securely to the inside wall of the main duct and rises 22" into the
main exhaust shaft. Note: When the SDR is being used with a clothes dryer, the screws or rivets securing the SDR to the shaft wall MUST be fastened from within the shaft to avoid protrusions that may lead to excessive lint buildup. Product
Information |
|
