EXHAUSTO RSIB Inline Draft Inducer
The EXHAUSTO RSIB Power Venter is an inline draft inducer specifically designed for applications that require reliability, efficiency, low noise levels, low energy consumption, variable speed, and compact design.
The RSIB is powered by a commercial grade variable speed TEFC (totally enclosed fan-cooled) motor with Class A insulation, sealed and permanently lubricated bearings, and thermal overload protection.

For use with condensing and non-condensing heating appliances operating with flue gas temperatures below 575°F.

Typical uses include the mechanical venting of gas-fired boilers and water heaters.

For indoor or outdoor installation.

Product Information
Installation Manual
EXHAUSTO RSIB Power Venter
| Features | Specifications | Capacity |

RSIB Features
  1. Efficency Mechanical venting ensures that gas-fired appliances will always be drafted per the manufacturer's specific recommendations. Fuel will be utilized more efficiently, ultimately reducing energy costs.
  2. Flexibility Virtually unlimited lengths of venting can be used without increasing stack size and circuitous routing of the vent pipe is no longer problematic.
  3. Durability Exhausto fans are designed to deliver optimum performance within the extremes of heat and dirt typically produced as the byproducts of fuel-burning heating appliances and commercial food preparation equipment. All components are produced in-house by Exhausto in Denmark to the company's own exacting specifications.
  4. Low Maintenance The heavy duty direct drive motor with permanently lubricated and sealed ball bearing assembly is essentially maintenance free, virtually eliminating annual service costs (with the exception of grease ducts and commercial dryer applications, which must be cleaned at regular intervals).
  5. Safety Each appliance is interlocked with the CASI control: the fan starts when a call for heat is received and the ignition sequence is only initiated once an adequate, pre-set draft is established. If the fan fails (due to a power failure or mechanical problem), all appliances monitored by the control will be shut down until the problem is corrected.
  6. Corrosion Resistant Corrosion resistant stainless steel inner housing with galvanized steel outer housing.
  7. Warranty Two (2) year limited factory warranty with ten (10) year warranty against corrosion perforation.

Return to Top of Page


RSIB Specifications
Motor power output, fan revolutions per minute (RPM), electrical requirements, duct connection sizes, and approximate shipping weight.

RSIB Fan 300 350 400 500
Motor Output HP 0.5 1.0 2.0 3.0
RPM RPM 1600 1740 1740 1740
Voltage Volts 1 x 120 3 x 200-240 / 4 x 440-480
Amperage Amps 5.8 3.6 / 1.7 6.5 / 2.9 9.0 / 4.0
Duct Connection in. 12 14 16 20
Weight lbs. 70 84 132 170

Return to Top of Page

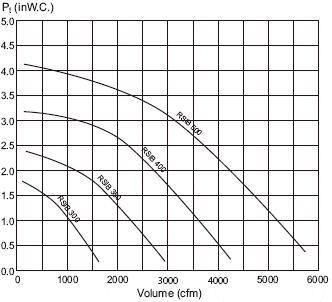

RSIB Capacity

Return to Top of Page


Central Florida Representative:
Conservation Systems, Inc.
5850 Lakehurst Drive, Suite 120
Orlando, FL 32819-8386
407.351.9121 Phone
407.352.6391 Fax
www.csiworldwide.com
U.S. Distributor:
Exhausto
1200 Northmeadow Parkway, Suite 180
Roswell, GA 30076-3993
Tel: (800) 255-2923
Fax: (770) 587-4731
us.exhausto.com

Specifications subject to change without notice.
