EXHAUSTO CASV Chimney Automation System

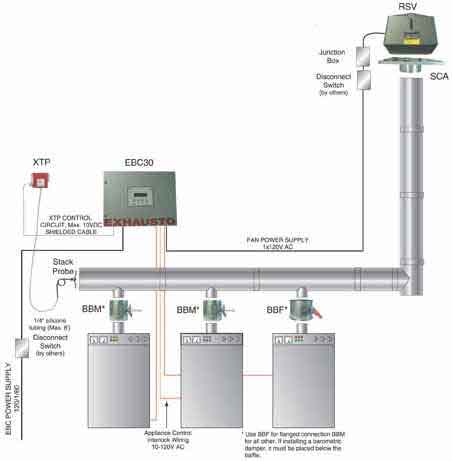

Multiple-appliance draft control system that uses an electronic differential pressure controller and sensors to automatically maintain the optimum amount of draft for every gas-fired appliance utilizing a common exhaust system. A typical system is shown in the diagram below. Click on an individual component for more detailed information on its function in the system.

| Features | Specifications |

Sample EXHAUSTO CASV Chimney Automation System. Click on an individual component for more information,

Return to Top of Page

CASV Features

Efficency Mechanical venting ensures that gas-fired appliances will always be drafted per the manufacturer's specific recommendations. Fuel will be utilized more efficiently, ultimately reducing energy costs.

Flexibility Virtually unlimited lengths of venting can be used without increasing stack size and circuitous routing of the vent pipe is no longer problematic.

Durability Exhausto fans are designed to deliver optimum performance within the extremes of heat and dirt typically produced as the byproducts of fuel-burning heating appliances and commercial food preparation equipment. All components are produced in-house by Exhausto in Denmark to the company's own exacting specifications.

Low Maintenance The heavy duty direct drive motor with permanently lubricated and sealed ball bearing assembly is essentially maintenance free, virtually eliminating annual service costs (with the exception of grease ducts and commercial dryer applications, which must be cleaned at regular intervals).

Safety Each appliance is interlocked with the CASV control: the fan starts when a call for heat is received and the ignition sequence is only initiated once an adequate, pre-set draft is established. If the fan fails (due to a power failure or mechanical problem), all appliances monitored by the control will be shut down until the problem is corrected.

Corrosion Resistant Hinged corrosion resistant fan housings are cast SAE331 aluminum with a minimum thickness of 3/16" and can be opened easily for inspection and periodic cleaning.

Warranty All equipment guaranteed against defects in materials and/or workmanship for a period of twenty-four (24) months from the date of installation, or thirty ( 30) months from date of shipment, whichever occurs first. There is an additional ten ( 10) year warranty against corrosion perforation of the fan housing. For complete warranty

Return to Top of Page

CASV Fan Specifications

Model	Discharge Velocity		Voltage	Amps	Weight
Model	Max FPM	Actual	Voltage	Amps	Weight
RSV 00900	02,351	5.90 x CFM	1 x 120V 60 Hz	00.5	028 lbs.
RSV 01200	02,592	2.90 x CFM	1 x 120V 60 Hz	01.4	046 lbs.
RSV 01400	02,593	1.90 x CFM	1 x 120V 60 Hz	02.9	060 lbs.
RSV 01600	01,729	1.20 x CFM	1 x 120V 60 Hz	05.8	086 lbs.
RSV 20000	01,729	2.90 x CFM	1 x 120V 60 Hz	01.4	047 lbs.
RSV 25000	02,222	1.90 x CFM	1 x 120V 60 Hz	02.9	060 lbs.
RSV 31500	02,771	1.20 x CFM	1 x 120V 60 Hz	05.8	088 lbs.
RSV 315-2	05,542	2.40 x CFM	1 x 120V 60 Hz	11.6	176 lbs.
RSV 40000	02,752	0.90 x CFM	1 x 200-240V 60 Hz	03.5	097 lbs.
RSV 400-2	05,504	1.80 x CFM	3 x 200-240V 60 Hz	07.0	200 lbs.
RSV 400-3	08,256	2.70 x CFM	3 x 200-240V 60 Hz	10.5	300 lbs.
RSV 400-4	11,008	3.60 x CFM	3 x 200-240V 60 Hz	14.0	400 lbs.
RSV 400-5	13,760	4.50 x CFM	3 x 200-240V 60 Hz	17.5	500 lbs.
RSV 45000	04,134	1.03 x CFM	3 x 200-240V 60 Hz	03.8	128 lbs.
RSV 450-2	08,280	2.06 x CFM	3 x 200-240V 60 Hz	07.6	256 lbs.
RSV 450-3	12,402	3.09 x CFM	3 x 200-240V 60 Hz	11.4	384 lbs.
RSV 450-4	16,536	4.12 x CFM	3 x 200-240V 60 Hz	15.2	512 lbs.
RSV 450-5	20,670	5.15 x CFM	3 x 200-240V 60 Hz	19.0	640 lbs.
