| The

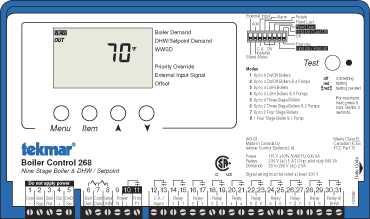

Boiler Control 268 is a nine- stage electronic PID boiler control that can provide either outdoor reset and setpoint operation or
outdoor reset and DHW operation.
The 268 stages and has Equal Run Time Rotation of the boilers and also operates the system pump and individual boiler pumps. One, two, three and four stage on/off boilers can be operated. The 268 also has options for fixed lead and fixed last rotation sequences. |
| A contact is also available for either a combustion air damper or external alarm. The control can provide outdoor reset using an outdoor sensor or the control can accept a 0-10 VDC signal from an EMS/BAS to establish the required water temperature. |
| Manufacturer:
tekmar Control Systems Ltd., Canada tekmar Control Systems, Inc., U.S.A. Head Office: 4611 - 23rd Street Vernon, B.C. Canada V1T 4K7 Tel. (250) 545-7749 Fax. (250) 545-0650 www.tekmarcontrols.com |
Central Florida Representative:
Conservation Systems, Inc. 5850 Lakehurst Drive, Suite 120 Orlando, FL 32819-8386 407.351.9121 Phone 407.352.6391 Fax www.csiworldwide.com |
| Specifications subject to change without notice. |
